Plaster reinforcement

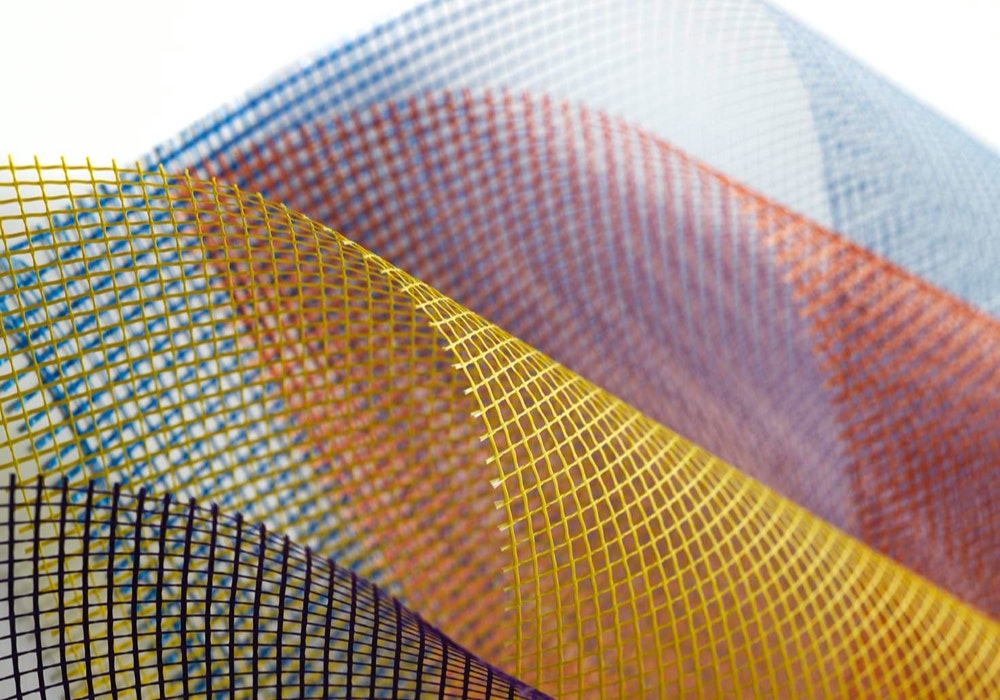

Gavazzi fiberglass meshes for plaster reinforcement

BlogWhere we areContactsSearch
  • it|
  • en|
  • de
  • applications
  • Gavazzi provides solutions for the reinforcement of internal and external plasters with fiberglass mesh.

    Use

    The reinforcement of internal and external plasters and smoothing compounds prevents the formation of cracks and fissures caused by the settling movements of the underlying supports (bricks, lightened or prefabricated blocks, etc.) and external agents.

    The width of the mesh is functional to the grain size of the plasters: the larger meshes are well suited to coarser plasters, the narrower ones to fine plasters and thin skims.

    Advantages

    • Prevention from the formation of cracks and fissures
    • Wide assortment: variety of weights and mesh size
    • Self-extinguishing treatment: on request it is possible to supply the meshes with a special "self-extinguishing" treatment

    Laying

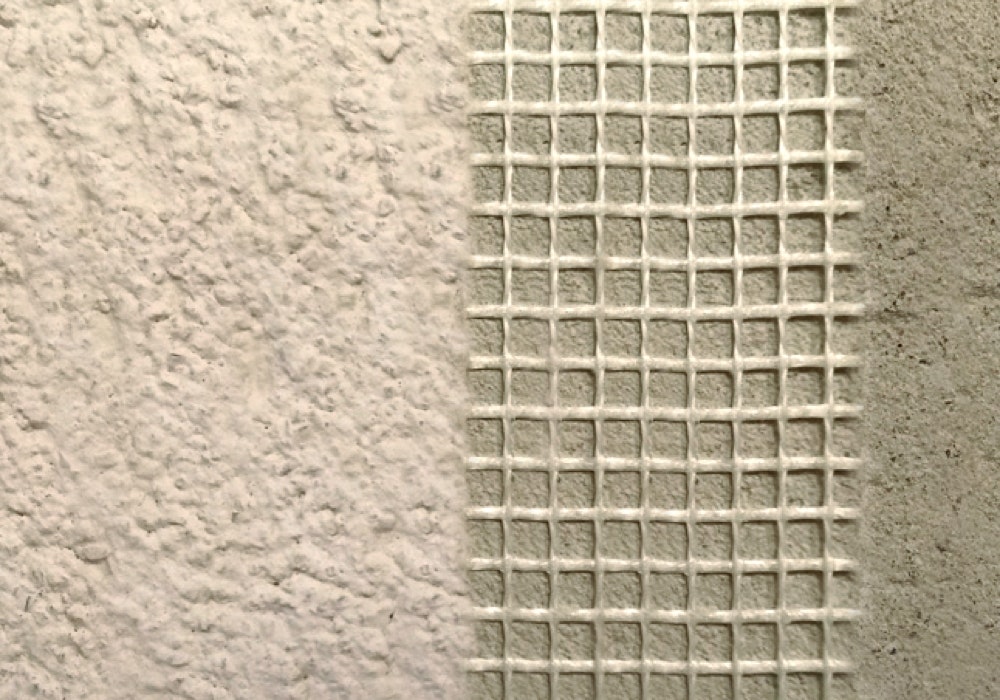

    The application of Gavazzi fiberglass mesh takes place on a first layer of still fresh plaster, overlapping the sheets for about 10 cm. A second layer of material is then applied, taking care to completely drown the mesh, preventing the possible formation of bubbles and folds.

    Recommended products

    ARTICLE   WEIGH MESH WIDTH WARP RESISTANCE TO TENSILE STRENGTH WEFT RESISTANCE TO TENSILE STRENGTH TECHNICAL DATA SHEET
    0059-A   61 g/m2 ± 5% 2,7 x 2,7 mm 950 N/5cm 1000 N/5cm
    0073-A   74 g/m2 ± 5% 4,0 x 5,0 mm 1300 N/5cm 1000 N/5cm
    0075-A   92 g/m2 ± 5% 4,0 x 5,0 mm 1400 N/5cm 1550 N/5cm
    0093-A   103 g/m2 ± 5% 6,4 x 6,7 mm 1500 N/5cm 1600 N/5cm
    0098-A   98 g/m2 ± 5% 12,5 x 11,8 mm 1650 N/5cm 1400 N/5cm
    0133-A   122 g/m2 ± 5% 12,5 x 11,5 mm 1650 N/5cm 2000 N/5cm
    0158-A 140 g/m2 ± 5% 10,0 x 10,0 mm 1900 N/5cm 2200 N/5cm
    0158-CA 140 g/m2 ± 5% 10,0 x 10,0 mm 35 N/mm 40 N/mm
    0225-A   222 g/m2 ± 5% 8,3 x 9,5 mm 3200 N/5cm 3200 N/5cm
    1260-A   305 g/m2 ± 5% 16,7 x 16,1 mm 3200 N/5cm 3200 N/5cm
